Speed Up Every Load
Maximize Every Minute
Truck Loading & Unloading Conveyors
Designed to Save Time, Labor, and Costs.
Who We Are?
LifConv pioneers the future of logistics with intelligent, high-performance industrial solutions designed to maximize efficiency and productivity. Our advanced systems simplify material movement across warehouses, factories, and distribution hubs.

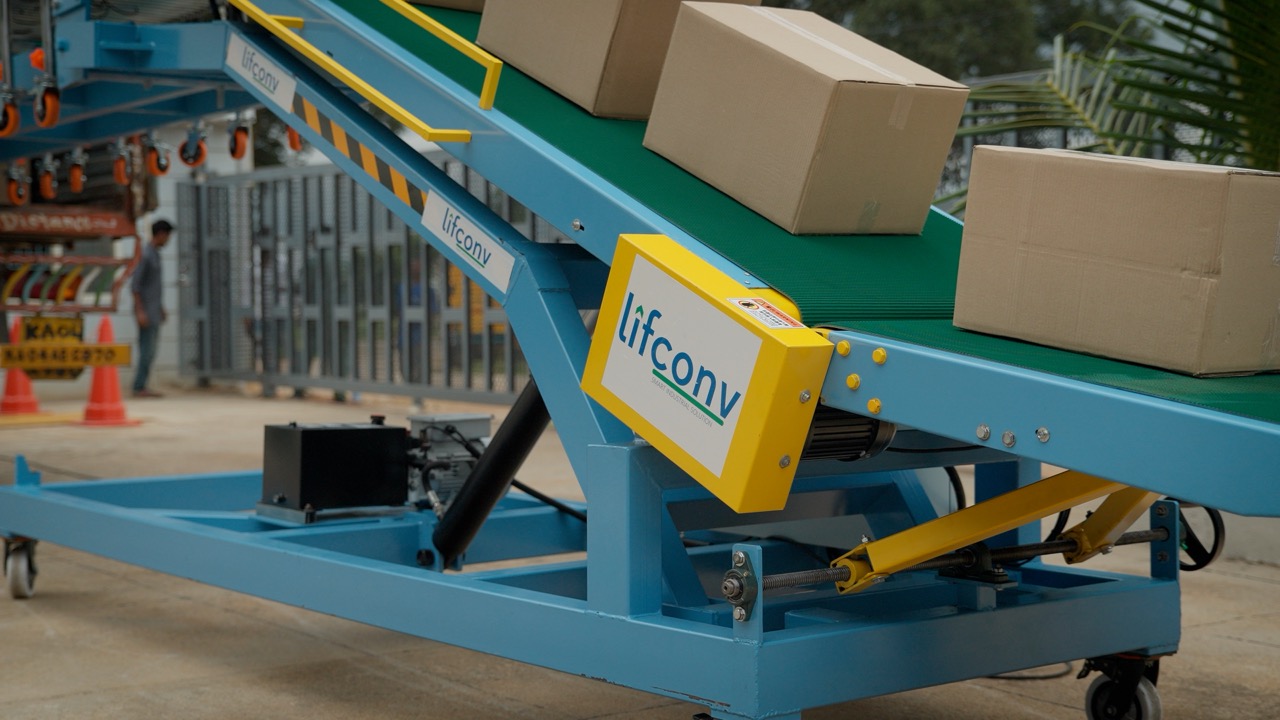

Truck Loader & Unloader (Lifconv)
Retractable length: 3.5 m to 10 m
Load capacity: 80 kg/meter
Height adjustment (700 mm–2,400 mm)
Forward/reverse drive

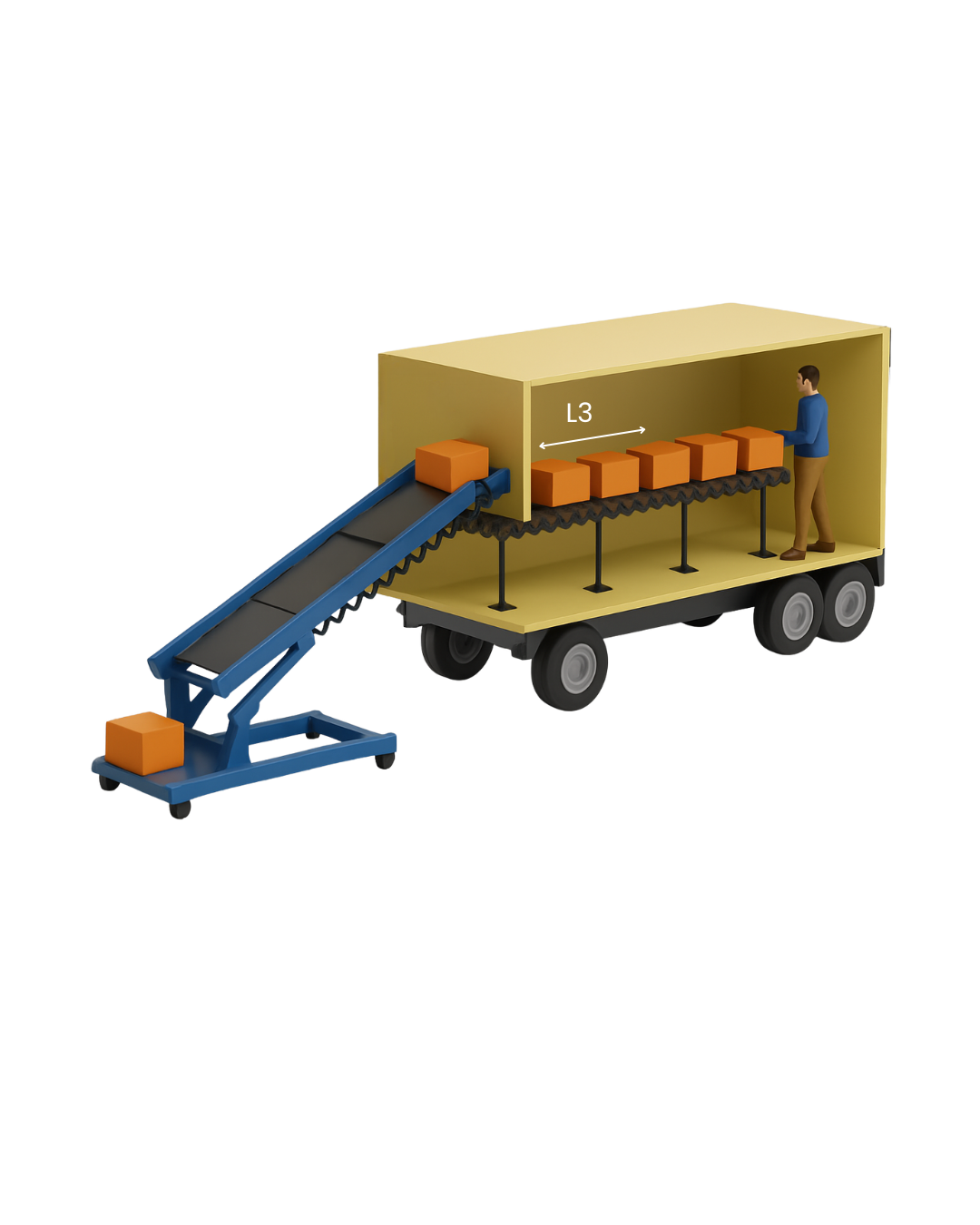

Belt Width: 600mm (refer above diagram)
Platform Length (L1): 1100mm (refer above diagram)
Climbing Length (L2): 3000mm (refer above diagram)
Roller Conveyor Length (L3): 3.5 meter to 10 meter expandable max
Unraised Height (H): 700mm
Raised Height (H1): 2400mm
Belt Speed: 30 meter / minute
Capacity: 80 kg / meter
Electric Cabinet: Forward / Reverse Rotation
Power: 1.5kw–2.2kw
Net Weight: 1000 kg
Enhanced Safety
Cost-Efficient Performance
Fast Loading & Unloading

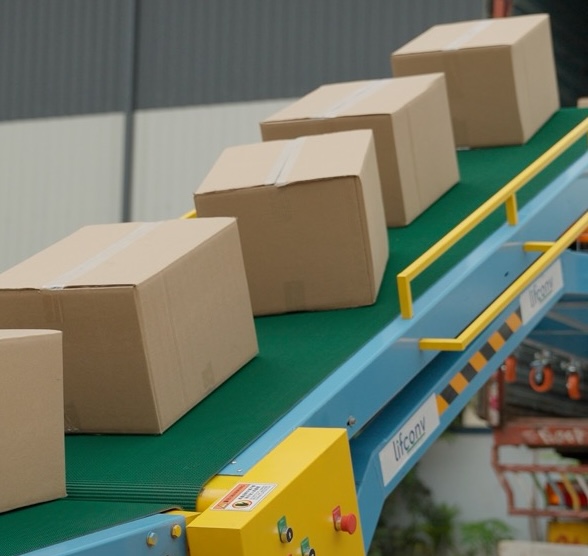

Truck Loader and Unloader (LifConv)
Faster Loading & Unloading
Our system significantly accelerates the loading and unloading process, ensuring that operations run smoothly and efficiently. This not only boosts overall productivity but also minimizes vehicle idle time, leading to quicker turnaround and improved workflow across your supply chain.
Cost-Efficient Performance
By reducing the need for excessive manual labor and streamlining operational tasks, our solution lowers your overall labor costs and minimizes potential delays. The result is a more efficient operation that saves time and money, offering a high return on investment in the long run.
Enhanced Safety
Designed with advanced safety mechanisms, our system prioritizes the well-being of workers and goods. It minimizes the risk of injuries and product damage during handling, creating a safer working environment and ensuring compliance with industrial safety standards.
Faster Loading & Unloading
Our system significantly accelerates the loading and unloading process, ensuring that operations run smoothly and efficiently. This not only boosts overall productivity but also minimizes vehicle idle time, leading to quicker turnaround and improved workflow across your supply chain.
Cost-Efficient Performance
By reducing the need for excessive manual labor and streamlining operational tasks, our solution lowers your overall labor costs and minimizes potential delays. The result is a more efficient operation that saves time and money, offering a high return on investment in the long run.
Enhanced Safety
Designed with advanced safety mechanisms, our system prioritizes the well-being of workers and goods. It minimizes the risk of injuries and product damage during handling, creating a safer working environment and ensuring compliance with industrial safety standards.
Got Questions
What types of materials can the LifConv handle?
LifConv is engineered to manage large boxes , sacks bag , can , tins , drums , and other packaged goods commonly found in logistics, warehousing, and manufacturing setups.
What is the machine’s length and power consumption?
Length:Total: 7.9 meters
Motor: 2.2 kW
Power Type: Electric (3-phase or single phase)
Voltage required 220v / 50hz
Is the conveyor height adjustable?
Yes. LifConv features a hydraulic or motorized lift system to match various dock or truck
heights.
●
Minimum Height: 700mm
● Maximum Height: 2400mm
How easy is it to operate?
Extremely user-friendly. It features a plug-and-play design and intuitive controls, requiring minimal setup and training.
Can the LifConv be moved between loading bays?
Absolutely. It comes equipped with heavy-duty castor wheels for effortless mobility.
What safety features are included?
Key safety elements include emergency stop buttons, non-slip surfaces,
overload
protection, and optional safety guards.
Is it suitable for continuous, heavy-duty use?
Yes. LifConv is built from industrial-grade components for long-term, heavy-duty performance.
Can it be customized?
Yes, we offer full customization in length, width, capacity, and features to match your operational requirements.
What kind of maintenance does it require?
Basic routine maintenance such as belt checks, lubrication, and tension adjustments.
A
full maintenance guide and support are provided.
